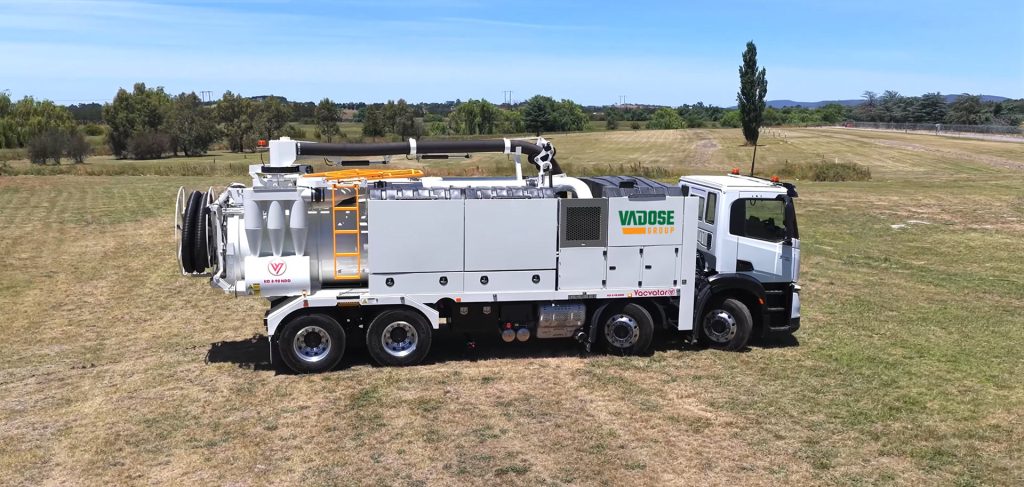

Vacvator HD 8-90 NDD DRY
VADOSE’s first units are the Vacvator HD 8-90 NDD DRY – a heavy-duty hydra-vac excavation truck designed for performance, payload and practical operation in demanding Australian conditions.
The configuration combines a dry vac system, with high pressure air lance @ 297cfm, 8,200 m³/h vacuum system, 9,000-litre spoil tank, 4,000 litres of onboard clean water and a five-metre hydraulic suction boom. An Iveco S-Way 460 hp 8×4 chassis, CAN bus management, remote operation and integrated safety systems provide a strong platform for mining, civil and industrial work.
The units are intended to support both dedicated dry hire and VADOSE-operated wet hire across Western Australia, subject to final build, site configuration and availability.
Headline performance
The Vacvator HD 8-90 NDD DRY combines high-capacity hydra-vac performance with substantial spoil and water capacity, extended boom reach and powerful high-pressure water systems. Its heavy-duty configuration is designed to support efficient operation across demanding mining, civil and industrial applications.
The Vacvator HD 8-90 NDD DRY is designed and manufactured in Australia, with technical support, servicing and parts availability provided through its Goulburn facility and authorised service network.
System | Specification |
|---|---|

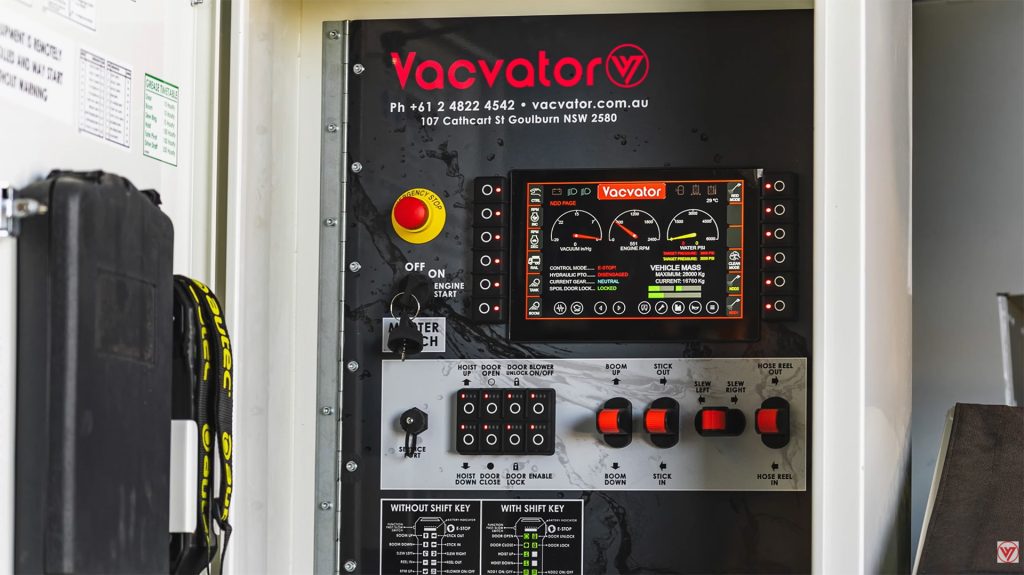

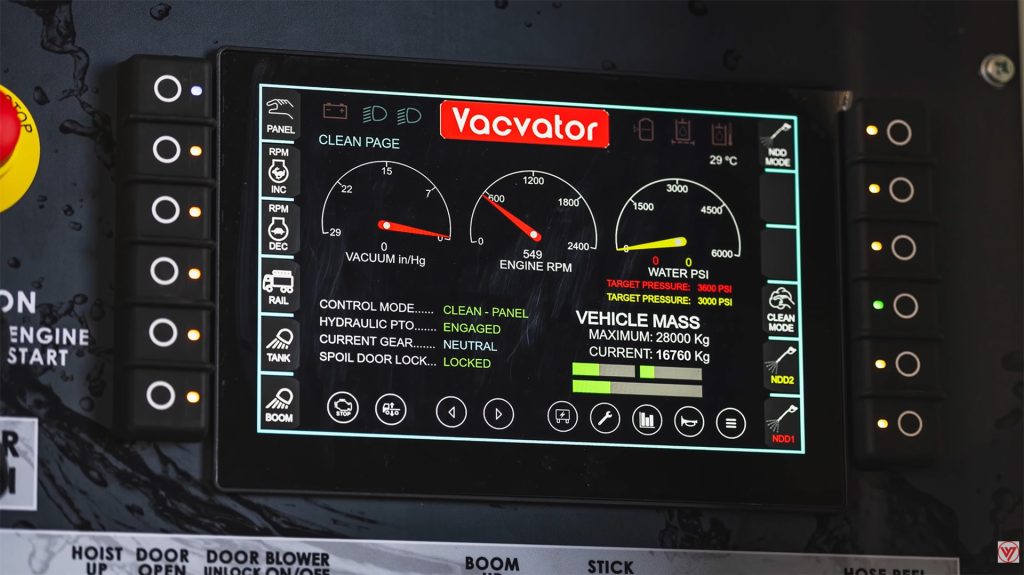

Operating system | Interactive colour touch-screen CAN bus system
Remote access telemetry and diagnostics listed by the manufacturer GPS listed as an option |
Vacuum system | Jurop Helix 1500 rotary-lobe blower
Three-stage filtration 15 m of 125 mm rearmounted hose on a remote-operated reel Vacuum power: 8,200 m³/h (4,826 cfm), up to -94 kPa / -28 in Hg |
Dry vac system | Screw compressor Pack Smart V130 500m³/h (297cfm)
Auto clean function, reverse pulse on filter elements – filter and cyclone auto clean High pressure air lance 380m³/ (225cfm) Full volume air supply port 500m³/h (297cfm) Regulated air supply port 0-13 Bar (0-190psi) |
Spoil system | 9,000 L spoil tank
Fully opening hydraulic door Four-point hydraulic wedge locking Telescopic tipping hoist with safety valve |
Water / NDD | 4,000 L poly saddle tanks
Backflow-protected ground-level fill Twin high-pressure water system at 32 L/min and 3,600 psi / 248 bar Two 20 m hoses |
Boom | Three-function hydraulic boom
5 m reach with 340° slew Up/down and extension 200 mm / 8 in boom inlet |
Truck | Iveco S-Way 460 hp, 8×4, ZF automatic transmission
Overall length 10,763 mm Overall width 2,500 mm Overall height 3,794 mm Final delivered and registered dimensions to be verified |
Noise | Manufacturer states 82 dBA at 10 inches of vacuum |
Integrated safety and serviceability features
- Integrated scales and automatic safety shutdown protections
- Emergency stops at the control panel, remote and rear locations
- Wireless remote with variable speed, rechargeable batteries and emergency stop
- Spoil-tank and door safety props
- Fold-down handrail, maintenance walkway and harness attachment point
- Front and rear beacons, work lights, side light bars and UHF radio listed in the manufacturer specification
- Remote oil drains and grease points designed to support serviceability
- Vehicle cabins are equipped with In-Vehicle Monitoring Systems (IVMS) from MTData , providing greater operational visibility and supporting safe, accountable fleet management
